Description

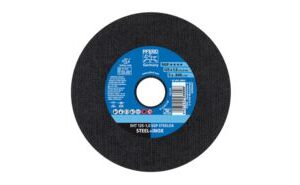

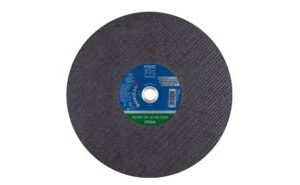

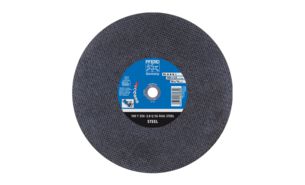

Large diameter cutting discs manufactured for use on stationary applications.
Dia: 300mm, 350, 400mm, 500mm, 600mm
Thickness: 2.0mm, 2.5mm, 2.8mm, 3.0mm, 3.4mm, 3.8mm, 4.0mm, 4.2mm, 4.6mm, 4.8mm, 5.5mm, 5.8mm, 6.3mm, 7.6mm, 7.8mm, 8.0mm
Operating speeds: 80m/s, 100m/s
Abrasive: Aluminium Oxide, Zirconia Alumina, Silicon Carbide
Hardness: K, L, N, O, Q, H, Q+S, P, R+T
Type: Chopsaw Steel, Chopsaw Stainless, Chopsaw Heavy-duty Steel, Chopsaw Heavy-duty Stainless, Chopsaw Cast & Stone, Rail Cutting, Lab Steel, Lab Stainless, Heavy-duty Steel, Zirkon Heavy-duty Cast & Steel.
Materials that can be worked:
- Hardened, heat-treated steels over 1,200 N/mm2 (over 38 HRC)
- Steels up to 1,200 N/mm² (< 38 HRC)
- Steel materials with a hardness over 54 HRC
- Steel, cast steel
- Stainless steel (INOX)
- Cast iron
- Plastics
- Stone
- Other non-ferrous metals
- Aluminium
Applications:
- Cutting
- Cutting of rails
- Cutting
- Cutting of profiles
- Cutting of pipes
- Cutting of solid material
Drive types:
- RAIL cutting machine
- Stationary machines
- CHOPSAW up to 3 KW
- CHOPSAW HD
- Labor cutting machine
- HEAVY DUTY cutting machine
